Journal of Medical Cases

Case Report

Volume 9, Number 10, October 2018, pages 328-331

Experience of Palliative Radiotherapy for Tumor-Associated Bleeding From Biliary Tract Cancer

Palliative radiotherapy (RT) for bleeding from gastrointestinal and genitourinary cancers is a useful treatment modality, able to control bleeding in 50-91% [1-4]. Biliary tract cancer (BTC) can cause bleeding due to tumor invasion to the intestinal wall; however, it is often refractory because of the lack of definitive treatment modalities. While the survival time may be increased after RT [5-7], the usefulness of RT for managing tumor-associated bleeding (TAB) from BTC has not yet been investigated.

We herein report two patients who were endoscopically and histopathologically confirmed to have TAB from BTC and underwent hemostatic RT at our institution between 2016 and 2017.

An 80-year-old man was pathologically diagnosed with lower extrahepatic cholangioadenocarcinoma in 2014. The tumor was localized, but an operation was not indicated because of cardiac dysfunction; therefore, only biliary drainage was performed. Two years after the diagnosis, he felt giddy and showed severe anemia, with a serum hemoglobin (Hb) level of 4.4 g/dL. Computed tomography (CT) demonstrated a poorly-enhanced, low-density mass in the lower common bile duct, which invaded the duodenal wall (Fig. 1). Duodenoscopy revealed sustained oozing hemorrhage from the papilla due to invasive cholangiocarcinoma (Fig. 2). Palliative external-beam RT was attempted for the tumor of the papilla of Vater because his anemia was not improved after 16 units of blood had been transfused (Fig. 3). The radiation dose was 30 Gy in 12 fractions. After starting RT, neither progression of anemia nor treatment toxicity was observed. He received meals normally and spent 4 months at home until he died of hepatic failure due to multiple metastases.

Click for large image

Figure 1. CT demonstrated a poorly-enhanced, low-density mass in the lower common bile duct, which invaded the duodenal wall (arrow).

Click for large image

Figure 2. Duodenoscopy revealed sustained oozing hemorrhaging from the papilla of invasive cholangiocarcinoma.

Click for large image

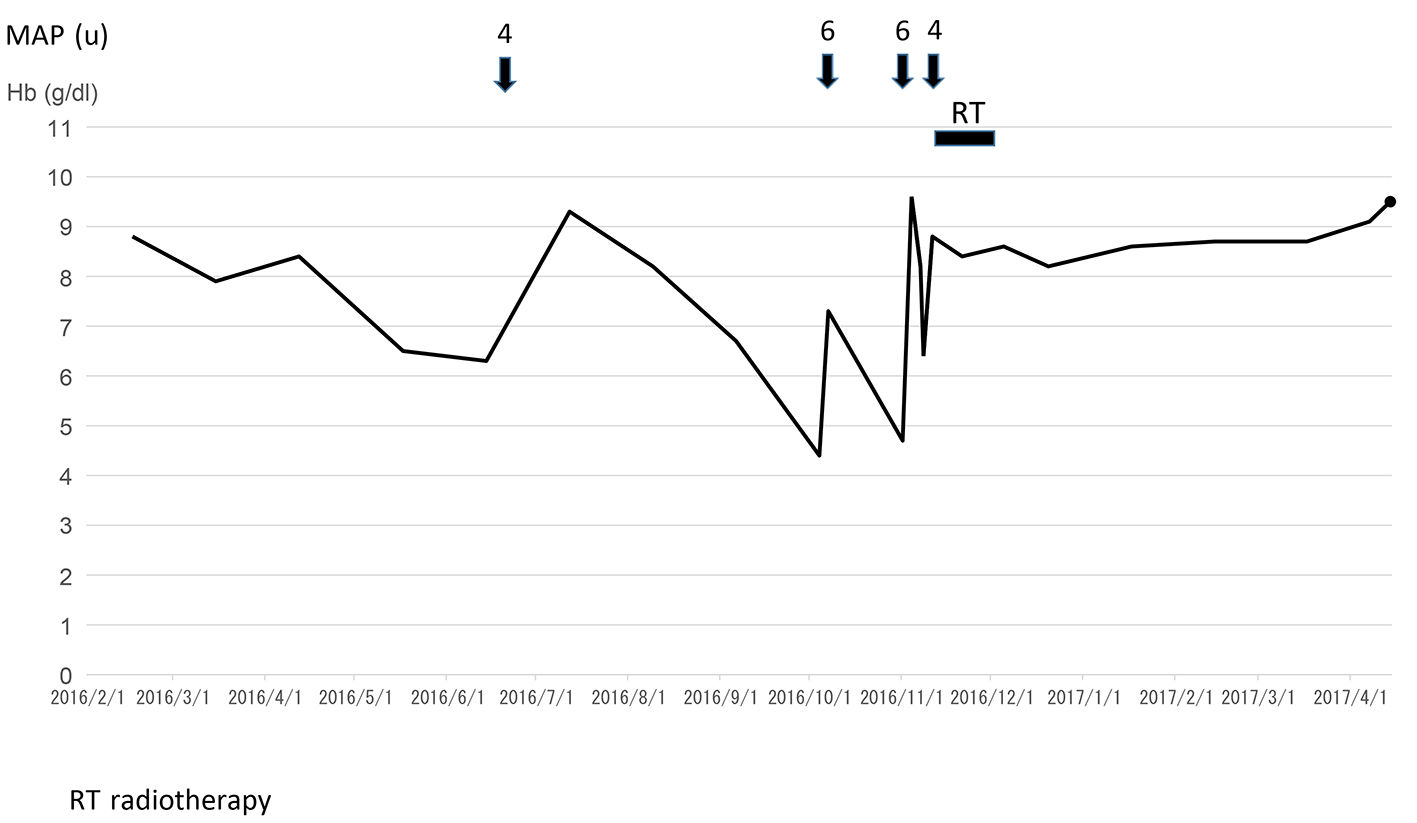

Figure 3. The clinical course of case 1.

An 86-year-old man underwent choledochectomy and cholecystectomy with choledocho-jejunostomy for gallbladder adenocarcinoma in 2016. Ten months after the operation, he showed black stool and epigastralgia. The serum Hb level was 5.2 g/dL, and CT revealed both a poorly-enhanced, low-density recurrent mass at the porta hepatis, which invaded the duodenal wall, and an aneurismal dilation of the invaded-tumor vessel (Fig. 4). Duodenocsopy showed a red-colored, easily-hemorrhaged ulcer with submucosal growth appearance at the supraduodenal angle (Fig. 5), which was diagnosed histopathologically as adenocarcinoma. Palliative RT with 30 Gy in 10 fractions was indicated for the recurrent tumor because conservative treatment including fasting, blood transfusion and the administration of a proton-pump inhibitor was not effective (Fig. 6). After starting RT, neither progression of anemia nor treatment toxicity was observed. He is still asymptomatic at 3 months after RT.

Click for large image

Figure 4. CT revealed both a poorly-enhanced, low-density recurrent mass at the porta hepatis, which invaded the duodenal wall, and an aneurismal dilation of the invaded-tumor vessel (arrow).

Click for large image

Figure 5. Duodenocsopy showed a red-colored, easily-hemorrhaged ulcer with submucosal growth appearance at the supraduodenal angle.

Click for large image

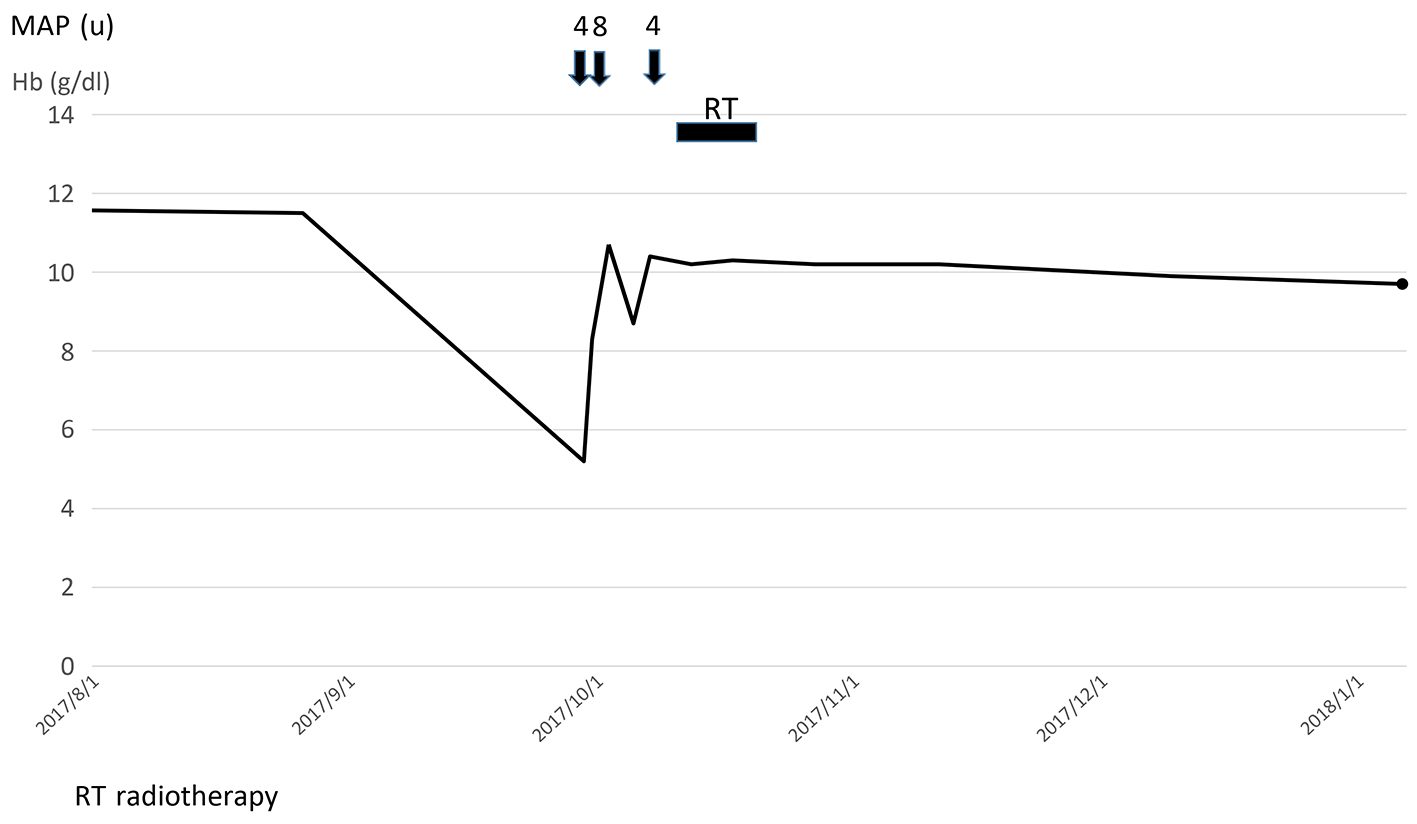

Figure 6. The clinical course of case 2.

The role of RT for BTC remains controversial due to the lack of large randomized trials. Therefore, RT is not recommended as a standard treatment, except for in a palliative setting, including for localized metastases or uncontrolled bleeding [8, 9]. Radiation gives rise to denudation of the surface of blood vessels, leading to thrombosis and capillary necrosis as the result of acute damage [10, 11]. Favorable results of prolonging the survival time in BTC [5] and the reported efficacy for TAB in other cancers [12] suggest the hemostatic effect of RT in BTC; however, we found no reports describing the efficacy and safety of TAB from BTC in detail.

The effect of palliative RT on bleeding from gastric cancer has received more attention than that on bleeding from BTC. Small retrospective studies have shown a treatment success rate of 54-91% and a median duration of response ranging from 1.5 to 11.4 months with dose fractionation regimens of 6 - 60 Gy [1, 2]. Grade 3 - 4 acute toxicities occurred in up to 15% of patients treated with RT alone [1]. Therefore, hemostatic RT for gastric cancer is suggested not only to be an effective and safe treatment option but to improve the patient’s quality of life, although the optimum dose fractionation regimen is unclear.

In our cases, treatment success was achieved in both patients, and they were able to spend their remaining life at home with no restriction on their oral intake. Furthermore, no adverse events were seen in any of the two patients after palliative RT. Therefore, palliative RT for TAB from BTC with 30 Gy in 10 - 12 fractions is expected to be an effective and safe treatment modality.

Palliative RT for TAB from BTC is suggested not only to be an effective and safe treatment option, but to improve the patient’s quality of life. The further accumulation of cases will be required in order to confirm the usefulness of hemostatic RT for BTC.

Conflict of Interest

No competing financial interests exist.

1. Tey J, Soon YY, Koh WY, Leong CN, Choo BA, Ho F, Vellayappan B, et al. Palliative radiotherapy for gastric cancer: a systematic review and meta-analysis. Oncotarget. 2017;8(15):25797-25805.
   doi pubmed
2. Kawabata H, Uno K, Yasuda K, Yamashita M. Experience of low-dose, short-course palliative radiotherapy for bleeding from unresectable gastric cancer. J Palliat Med. 2017;20(2):177-180.
   doi pubmed
3. Cameron MG, Kersten C, Guren MG, Fossa SD, Vistad I. Palliative pelvic radiotherapy of symptomatic incurable prostate cancer - a systematic review. Radiother Oncol. 2014;110(1):55-60.
   doi pubmed
4. Duchesne GM, Bolger JJ, Griffiths GO, Trevor Roberts J, Graham JD, Hoskin PJ, Fossa SD, et al. A randomized trial of hypofractionated schedules of palliative radiotherapy in the management of bladder carcinoma: results of medical research council trial BA09. Int J Radiat Oncol Biol Phys. 2000;47(2):379-388.
   doi
5. Macdonald OK, Crane CH. Palliative and postoperative radiotherapy in biliary tract cancer. Surg Oncol Clin N Am. 2002;11(4):941-954.
   doi
6. Houry S, Barrier A, Huguier M. Irradiation therapy for gallbladder carcinoma: recent advances. J Hepatobiliary Pancreat Surg. 2001;8(6):518-524.
   doi pubmed
7. Shinohara ET, Mitra N, Guo M, Metz JM. Radiotherapy is associated with improved survival in adjuvant and palliative treatment of extrahepatic cholangiocarcinomas. Int J Radiat Oncol Biol Phys. 2009;74(4):1191-1198.
   doi pubmed
8. Khan SA, Davidson BR, Goldin RD, Heaton N, Karani J, Pereira SP, Rosenberg WM, et al. Guidelines for the diagnosis and treatment of cholangiocarcinoma: an update. Gut. 2012;61(12):1657-1669.
   doi pubmed
9. Squadroni M, Tondulli L, Gatta G, Mosconi S, Beretta G, Labianca R. Cholangiocarcinoma. Crit Rev Oncol Hematol. 2017;116:11-31.
   doi pubmed
10. Lee JA, Lim DH, Park W, Ahn YC, Huh SJ. Radiation therapy for gastric cancer bleeding. Tumori. 2009;95(6):726-730.
    doi pubmed
11. Fajardo LF. The pathology of ionizing radiation as defined by morphologic patterns. Acta Oncol. 2005;44(1):13-22.
    doi pubmed
12. Cihoric N, Crowe S, Eychmuller S, Aebersold DM, Ghadjar P. Clinically significant bleeding in incurable cancer patients: effectiveness of hemostatic radiotherapy. Radiat Oncol. 2012;7:132.
    doi pubmed
