Hypercoagulopathy in COVID-19, Deep Venous Thrombosis After Extra-Corporeal Membrane Oxygenation Therapy: A Case Report

Severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) is a novel coronavirus that has caused a pandemic across the world in the years 2019 - 2020 with over 100 countries reporting high infection rates (> 20,000 cases) [1]. In addition to the significant infectivity of the virus, the disease caused by the virus, coronavirus disease 2019 (COVID-19), has demonstrated significant mortality. One of the most interesting observations about COVID-19 is the wide range of clinical manifestations it has from mild upper respiratory illness to respiratory failure and acute respiratory distress syndrome (ARDS). This report highlights one of these manifestations, namely the hypercoagulopathy suspected to be caused by SARS-CoV-2 infection as evidenced by multiple systematic reviews and case series [2]. As the number of cases rose exponentially early on in the pandemic, investigations were underway to understand the pathophysiological mechanisms for severe disease and ultimately death. Multiple autopsy reports demonstrated evidence for microvascular thrombosis in pulmonary vessels suspected to result from pneumonitis and alveolar injury induced by the infection [3, 4]. In our case, we will demonstrate that SARS-CoV-2 infection is also associated with macrovascular thrombosis, and we will discuss the implications of this complication in the management of severe COVID-19 cases who require extracorporeal membrane oxygenation (ECMO) therapy.

A 33-year-old Hispanic male with no past medical history presented initially with subjective fever (temperature 37.4 °C) and dry cough. He was diagnosed with COVID-19 pneumonia via positive “Xpert SARS-COVID 2 PCR” nasopharyngeal swab, and computed tomography (CT) angiography chest showing multifocal, patchy, and bilateral ground-glass opacities in a peripheral distribution without any evidence for pulmonary embolism (PE) (Fig. 1). Initially, our patient was sent home after an evaluation revealed no fever, mild tachycardia with a heart rate of 117 beats/min, mild tachypnea with a respiratory rate of 22 breaths/min, and no increased oxygen requirement. He was given a prescription for azithromycin 250 mg daily and advice for home quarantining and supportive care.

Click for large image

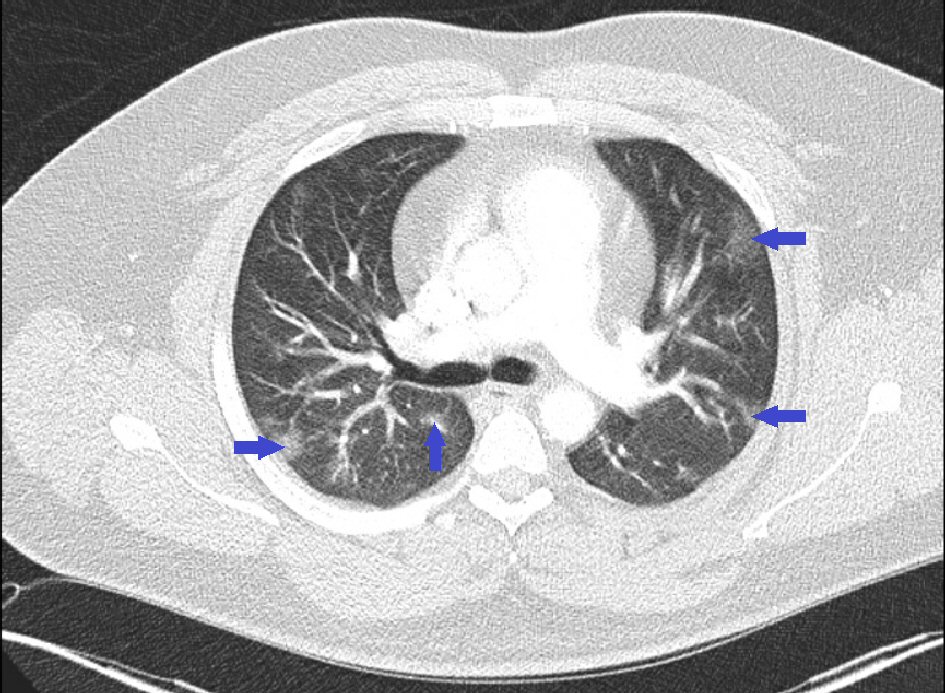

Figure 1. Chest computed tomography scan with intravenous contrast showing multifocal, patchy, and bilateral ground-glass opacities.

However, he returned 5 days later with worsening subjective fever, dry cough, and the addition of nausea, and shortness of breath. Evaluation at that time, revealed temperature 37.2 °C, mild tachycardia with heart rate 118 beats/min, worsened tachypnea with respiratory rate 24 - 41 breaths/min, oxygen saturation down to 86% on room air, up to 92% on 4 L/min of oxygen via nasal cannula, but our patient continued to have respiratory distress and shortness of breath, which were relieved only with supplemental oxygen from high-flow nasal cannula set at fraction of inspired oxygen 100% with 25 L/min of oxygen flow. Repeat CT angiography chest was completed, which again showed no evidence of PE, but interval increase of the bilateral pulmonary opacities noted on the previous CT 5 days before (Fig. 2). The patient was initially admitted to the medical/surgical (Med/Surg) telemetry ward.

Click for large image

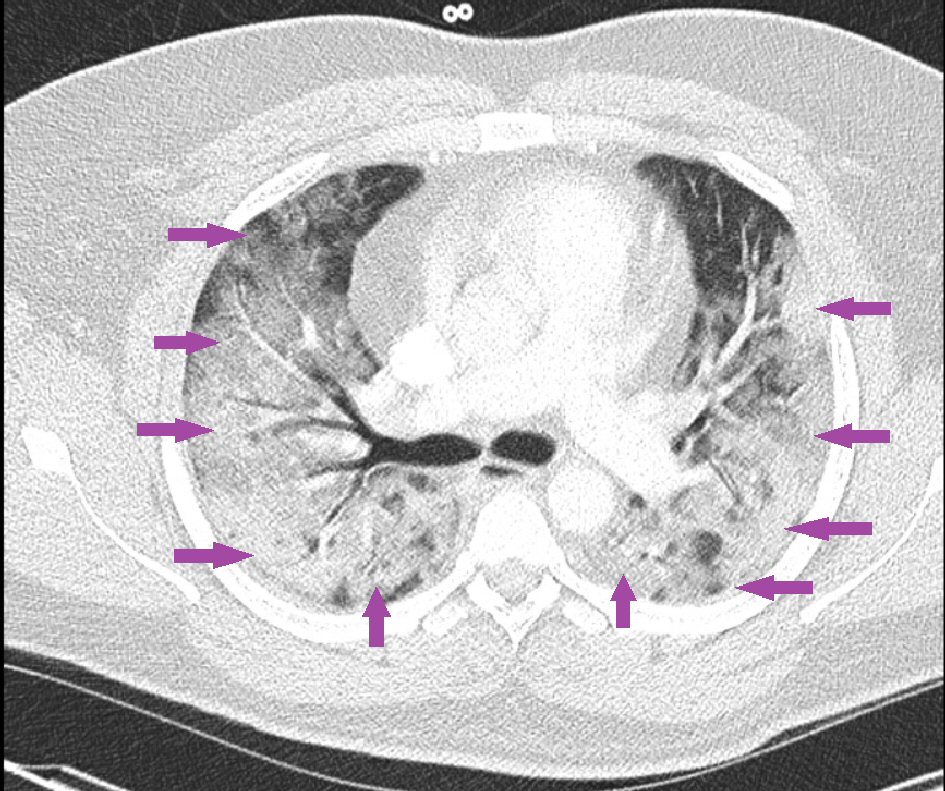

Figure 2. Repeat chest computed tomography scan with intravenous contrast showing interval increase in pulmonary opacities bilaterally without any evidence of pulmonary embolism.

Inflammatory markers, initially, showed significant elevations except for D-dimer which was 0.460 µg fibrinogen equivalent unit (FEU)/mL (normal range: 0 - 0.490 µg FEU/mL) (C-reactive protein (CRP) > 300 mg/L (normal range: 0.5 - 5 mg/L), ferritin > 2,000 ng/mL (normal range: 30 - 400 ng/mL), lactate dehydrogenase (LDH) 492 U/L (normal range: 135 - 225 U/L), fibrinogen 1,100 mg/dL (normal range: 240 - 510 mg/dL), procalcitonin 0.9 ng/mL (normal range: 0 - 0.1 ng/mL)].

The patient was being treated for possible superimposed bacterial pneumonia with empiric antibiotics as well as supportive antioxidant vitamins/minerals, and was initially receiving deep venous thrombosis (DVT) prophylaxis with enoxaparin 40 mg subcutaneously daily. His supplemental oxygen requirements remained high, increasing from a flow rate of 25 L/min to 35 L/min, and remaining on 100% fraction of inspired oxygen. Despite this respiratory support, he continued to desaturate as low as 88%, eventually requiring intubation and mechanical ventilation before being transferred to a tertiary care facility to undergo central veno-venous (CVV)-ECMO.

After transfer, the patient was given convalescent plasma and increasing doses of medical DVT prophylaxis with enoxaparin 40 mg subcutaneously every 12 h, as his D-dimer trended upward to 4.09 µg FEU/mL from 0.460 µg FEU/mL (normal range: 0 - 0.490 µg FEU/mL). He was also cannulated for CVV-ECMO in his right internal jugular vein (RIJV) and right common femoral vein (RCFV). A left internal jugular central venous catheter was placed for continued care. As part of CVV-ECMO therapy, the patient received a continuous infusion of unfractionated heparin with a goal activated partial thromboplastin time (aPTT) of 60 - 80 throughout the whole time spent on ECMO and for one additional day. While on ECMO, the patient spent the majority of time within the target range.

During his hospital course, he underwent tracheostomy tube placement for failing to wean off of mechanical ventilation. Despite continuous therapeutic anticoagulation with unfractionated heparin, the patient’s D-dimer continued to trend upward to a peak level of 17.79 µg FEU/mL (normal range: 0 - 0.490 µg FEU/mL). The day after decannulation, he underwent controlled ultrasound (US) venous duplex scans of the RIJV and RCFV, which revealed non-occlusive thrombi in both veins. Therapeutic dosing of anticoagulant therapy continued despite being off of CVV-ECMO given the discovery of these DVTs.

Repeat nasopharyngeal swab and tracheal aspirate tests for SARS-CoV-2 after 40 days were negative and the patient was subsequently transferred back to the community hospital for further care.

Eventually, after hospitalization for 58 days, the patient was discharged home on warfarin 7.5 mg daily with prothrombin time/international normalized ratio (PT/INR) monitoring as an outpatient.

COVID-19 disease is a novel presentation of Coronaviridae, which has caused a worldwide pandemic. In addition to the multi-system organ involvement, the virus can be associated with coagulopathy as well [2], which has been described in systematic reviews and a few case series with an increased incidence of VTE associated with COVID-19 disease up to 6.2% [5]. The underlying cause of the hypercoagulable state induced by SARS-CoV-2 infection is suspected to be the severe systemic inflammatory response [6]. The primary predictive marker associated with increased risk of VTE in COVID-19 patients is the D-dimer with a direct relationship between D-dimer level and increased incidence of VTE [7]. It should be noted that catheter-associated DVTs (CaDVT) are a known complication of CVV-ECMO, the incidence of which is reported to be in the range of 10-85% in patients without SARS-CoV-2 infection [8]. Therefore, it is important to report on instances of CaDVTs in the setting of COVID-19 due to the severe extent of the disease and because of the increasing use of ECMO in the treatment of severe COVID-19 patients.

Our case was appropriately started on CVV-ECMO for persisting hypoxic respiratory failure due to severe COVID-19 pneumonia. Immediately before the initiation of CVV-ECMO, the patient’s D-dimer was 2.67 µg FEU/mL (normal range: 0 - 0.490 µg FEU/mL) and there was no evidence of VTE at that time. Despite appropriate practices to prevent thrombosis from SARS-CoV-2 and simultaneous ECMO therapy, the patient’s D-dimer continued to trend upward, and the patient developed DVTs at the cannula sites in his RIJV and RCFV. Artifoni et al showed that higher levels of D-dimer correlate positively with a higher incidence of VTE in COVID-19 patients [7]. Subsequently, in our case, post-decannulation US venous duplex revealed DVTs in the RIJV and RCFV.

Based upon ongoing available research, a wide range of incidences (23-85.4%) have been reported for CaDVT in the setting of ECMO therapy since 2017 [8-10]. Because of this inconsistency in incidence reports, there is currently no universal guideline for post-decannulation US scans to check for VTE at cannulation sites. Current recommendations from the Extracorporeal Life Support Organization (ELSO) are to screen patients based on clinical suspicion in each individual case [11]. However, given that COVID-19 disease is suspected to be associated with hypercoagulopathy and that there are already varying reports of CaDVT associated with ECMO therapy, some with rates alarmingly high more than 60% [10], protocols for ECMO therapy would benefit from the addition of routine post-decannulation screening recommendations. At least, during the current pandemic, patients with COVID-19 who require ECMO therapy would benefit from routine screening within 24 - 48 h post-decannulation to ensure that potentially life-threatening diagnoses are not missed.

Data indicating that the rates of using ECMO in the treatment of COVID-19 patients are scarce, although the ELSO registry shows that there are 3,360 confirmed COVID-19 cases currently receiving ECMO therapy [12]. Without having reliable data about the current number of active cases, which is difficult to ascertain because, while death rates are reported promptly, recovery rates are not, it is too complicated to establish an estimation of the rate of ECMO therapy usage in COVID-19 cases.

In conjunction with this difficulty, there are even fewer reports of VTE post-ECMO-decannulation. To our knowledge, there is a single article by Belys et al in the British Journal of Anaesthesiology, which describes 12 patients who were treated with CVV-ECMO for severe COVID-19 ARDS between March 1, 2020 and April 4, 2020 [13]. Of these, six patients were noted to have VTE, four of which were discovered during cannulation for CVV-ECMO, one of which developed massive PE as a result of cannulation and died, one of the six developed CaDVT, and the remaining two patients of six developed intra-circuit thrombosis [13]. The conclusion of this paper was that screening for VTE prior to the initiation of CVV-ECMO in COVID-19 ARDS patients should be done. However, since VTE is a known complication of CVV-ECMO by itself without the presence of SARS-CoV-2 infection, and since currently during the SARS-CoV-2 pandemic, the infection is strongly suspected to induce hypercoagulopathy, our case shows that screening before starting ECMO therapy would not be enough. Therefore, we argue that protocols should be written recommending screening for VTE with Doppler US both pre-cannulation and post-decannulation related to CVV-ECMO therapy in COVID-19 patients.

To our knowledge, hypercoagulopathy with COVID-19 disease is an uncommon occurrence based on the evidence currently available. However, the severity of the disease makes further research into this subject crucial especially since data regarding VTE in COVID-19 patients are increasing. In addition, as a large number of severe COVID-19 ARDS cases require ECMO therapy during the course of treatment, a protocol to screen patients for VTE post-ECMO-decannulation would be especially useful in this patient population given the high degree of suspicion that SARS-CoV-2 infection induces a hypercoagulable state.

COVID-19 has many disease manifestations with growing evidence suggesting the disease induces a hypercoagulable state. Many COVID-19 cases are severe enough to warrant ECMO therapy during the course of treatment. ECMO therapy carries a risk of VTE by itself but this risk is likely worsened by COVID-19 with dire consequences. To mitigate these consequences, we recommend updating current protocols for managing COVID-19 patients who require ECMO therapy with pre-cannulation and post-decannulation US venous duplex to screen patients for possible VTE.
